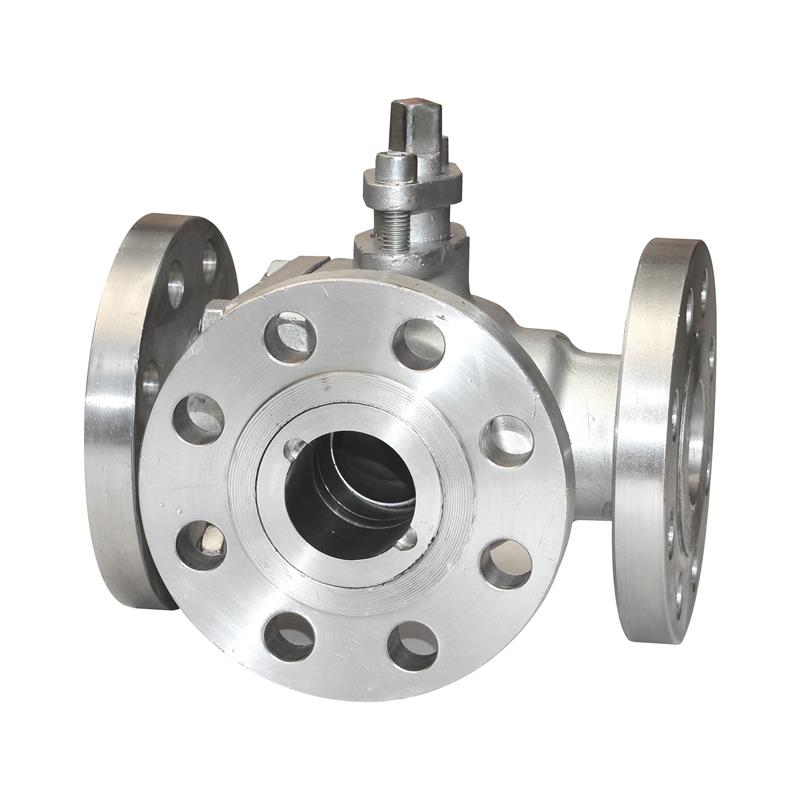

Three-way Ball Valve

• Three-Way Flow Control:The valve features a three-way ball design, allowing it to either mix or divert fluids between two different inlets and one outlet (or vice versa). Available in both L-port and T-port configurations, it offers flexibility in fluid management.
• High-Performance Sealing:Equipped with high-quality seals such as PTFE or PEEK, ensuring leak-tight operation, even under high pressure and temperature conditions.
• Durable Construction:Manufactured from high-strength materials like stainless steel, carbon steel, and alloy steels, the valve is designed to withstand corrosion, high temperatures, and demanding industrial environments.
• Full-Bore Design:The full-bore ball design ensures minimal pressure drop, enhanced flow capacity, and smooth fluid movement, improving system efficiency.
• Versatile Actuation Options:Available in manual, pneumatic, and electric actuators, offering flexibility in system control from fully automated to manual operations.
• Compact and Reliable:The three-way ball valve's compact design and reliable performance ensure that it can be easily integrated into various piping systems and remain functional even under high-demand applications.
• Cost-Effective:With minimal maintenance requirements and long service life, this valve provides a cost-effective solution for fluid control in a variety of applications.

• Oil & Gas (Pipeline Diversion, Flow Control)
• Chemical and Petrochemical Processing (Fluid Mixing, Diverting Flows)
• Water Treatment (Flow Regulation, Diversion)
• HVAC Systems (Air and Water Distribution)
• Power Generation (Boiler Control, Steam Systems)
• Food & Beverage Processing (Flow Mixing, Distribution)
• Pharmaceuticals (Fluid Diverting in Production Lines)

• Flexible Fluid Management:The three-way ball valve is ideal for systems requiring the diversion or mixing of fluid streams, offering greater flexibility in system design and operation.
• Leak-Proof Operation:With high-performance seals and a precision-engineered ball, the valve ensures tight shut-off and prevents leakage, maintaining system integrity.
• Reliable and Durable:Constructed with durable materials, the valve can handle high-pressure and high-temperature environments, ensuring long-term reliability and minimal maintenance.
• Optimized Flow Control:The full-bore ball design reduces flow resistance, resulting in minimal pressure drop and optimized system performance.
• Energy Efficient:The three-way ball valve improves flow efficiency, reducing energy consumption and ensuring smoother operation in fluid control systems.
• Versatile Actuation:Available with a variety of actuation options—manual, pneumatic, or electric—making it adaptable to both automated and manual systems.
• Cost-Effective and Low Maintenance:Its long lifespan and ease of maintenance result in reduced operational costs, making it a cost-effective choice for a wide range of industries.

• Valve Material:Stainless steel, carbon steel, or other custom materials based on application
• Design Type:Three-way ball valve (L-port or T-port options)
• Pressure Rating:Up to 1500 psi (custom pressure ratings available)
• Temperature Range:-20°C to 250°C (-4°F to 482°F) (custom temperature options available)
• Size Range:Available from 1/2 inch to 12 inches (DN15 to DN300)
• Connection Types:Flanged, threaded, welded, or custom connection options
• Seal Material:PTFE, PEEK, or other suitable sealing materials
• Actuation Type:Manual, pneumatic, or electric actuators (custom actuator options available)
• Flow Coefficient (Cv):Custom flow rates based on valve size and configuration
• Compliance:ISO 9001, API 6D, CE, ANSI, and other industry standards

Why Choose Our Three-Way Ball Valve?

Our Three-Way Ball Valve is the ideal solution for fluid control systems that require mixing or diverting flow. Whether you need to regulate multiple fluid streams, optimize system efficiency, or ensure leak-free operation, this valve provides high performance, reliability, and versatility. With various actuation options and a durable, corrosion-resistant design, it is perfect for applications in industries that require flexibility, precise control, and long-term durability.
